EF Core TPH

Entity Framework Core will represent an object-oriented hierarchy in a single table that takes the name of the base class and includes a "discriminator" column to identify the specific type for each row. EF Core will only include types that are explicitly included in the model and will only implement the discriminator column if two or more types (including the base type) have a DbSet configured for them.

The Model

Here is the model being used to illustrate inheritance in EF Core. It represents the type of contracts that you might enter into with a media/communications business.

language-csharp
|
public class Contract
{
    public int ContractId { get; set; }
    public DateTime StartDate { get; set; }
    public int Months { get; set;}
    public decimal Charge { get; set; }
}

public class MobileContract : Contract
{
    public string MobileNumber { get; set; }
}

public class TvContract : Contract
{
    public PackageType PackageType { get; set; }
}

public class BroadBandContract : Contract
{
    public int DownloadSpeed { get; set; }
}

public enum PackageType
{
    S, M, L, XL
}

Convention

Entity Framework Core offers two approaches to configuring the model so that the framework recognizes that an inheritance hierarchy exists. The first is to explicitly include DbSet properties in the DbContext for the base class and each of the derived types:

language-csharp
|
public class SampleContext : DbContext
{
    public DbSet<Contract> Contracts { get; set; }
    public DbSet<MobileContract> MobileContracts { get; set; }
    public DbSet<TvContract> TvContracts { get; set; }
    public DbSet<BroadBandContract> BroadBandContracts { get; set; }
}

This approach has the benefit of enabling you to easily query contract types explicitly e.g.

language-csharp
|
var mobileContracts = context.MobileContracts.ToList();

An alternative is to include a DbSet for the base class and then implicitly include the derived entities in the OnModelCreating method:

language-csharp
|
public class SampleContext : DbContext
{
    public DbSet<Contract> Contracts { get; set; }

    protected override void OnModelCreating(ModelBuilder modelBuilder)
    {
        modelBuilder.Entity<MobileContract>();
        modelBuilder.Entity<TvContract>();
        modelBuilder.Entity<BroadBandContract>();
    }
}

If you adopt this approach, you will need to use the OfType<TEntity> method to query for contracts of a particular type:

language-csharp
|
var tvContracts = context.Contracts.OfType<TvContract>().ToList();

Abstract base class

If instances of the base class are not intended to be instantiated, it would be more proper to declare the base class as abstract and to configure that in the OnModelCreating method while adding DbSet properties to the DbContext for the derived classes:

language-csharp
|
public class SampleContext : DbContext
{
    public DbSet<MobileContract> MobileContracts { get; set; }
    public DbSet<TvContract> TvContracts { get; set; }
    public DbSet<BroadbandContract> BroadbandContracts { get; set; }

    protected override void OnModelCreating(ModelBuilder modelBuilder)
    {
        modelBuilder.Entity<Contract>().ToTable("Contracts");
    }
}

public abstract class Contract
{
    public int ContractId { get; set; }
    public DateTime StartDate { get; set; }
    public int Months { get; set;}
    public decimal Charge { get; set; }
}

public class MobileContract : Contract
{
    public string MobileNumber { get; set; }
}

public class TvContract : Contract
{
    public PackageType PackageType { get; set; }
}

public class BroadbandContract : Contract
{
    public int DownloadSpeed { get; set; }
}

public enum PackageType
{
    S, M, L, XL
}

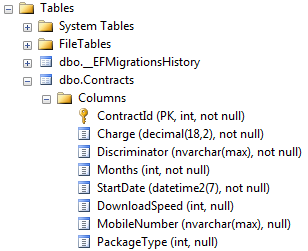

Each of the approaches outlined above will result in the same table structure being created:

Entity Framework Core Table Per Hierarchy

The table includes fields for the properties of the base Contract class, and for the properties in the derived classes. It also includes a column named "Discriminator", designed to identify the derived type that the data row represents. By default, EF Core will use the name of the class as a value for the discriminator column. So the value for a row that contains e.g. a TvContract will be "TvContract".

Configuration

You can configure aspects of the inheritance mapping via the Fluent API. The example above shows how to configure the table name for the abstract base class that didn't have a DbSet included in the DbContext using the ToTable method. In addition, you can specify a name and data type for the discriminator column, and the values to represent each type:

language-csharp
|
protected override void OnModelCreating(ModelBuilder modelBuilder)
{
    modelBuilder.Entity<Contract>()
            .ToTable("Contracts")
            .HasDiscriminator<int>("ContractType")
            .HasValue<MobileContract>(1)
            .HasValue<TvContract>(2)
            .HasValue<BroadbandContract>(3);
}

In this example, the data type for the discriminator column is specified as an int, and named "ContractType". If you choose to provide your values for the discriminator column, you must provide values for all non-abstract entities in the mapped hierarchy. The Contract entity in this example is abstract so it hasn't been included. But if the base type is not defined as abstract, it must have a discriminator value provided.

FAQ

What is the discriminator column when using a TPH inheritance in EF Core?

The discriminator column in the TPH inheritance is a special column added to the table to distinguish between different entity types.

Since a TPH inheritance stores all entity types in the same table, EF Core uses this column to identify which row corresponds to which entity type.


How to map the discriminator column to an enum when using a TPH inheritance in EF Core?

You can map a discriminator column to an enum type by first creating the enum and then mapping the TPH inheritance by using the enum type as a generic parameter to the HasDiscriminator method.

Here is an example:

public enum AnimalType
{
    Cat,
    Dog
}

protected override void OnModelCreating(ModelBuilder modelBuilder)
{
	modelBuilder.Entity<Animal>()
		.HasDiscriminator<AnimalType>("DiscriminatorColumnName")
		.HasValue<Cat>("Cat")
		.HasValue<Dog>("Dog");
}

How to change the name of the discriminator column when using a TPH inheritance in EF Core?

You can choose the discriminator column name in the OnModelCreating by calling the HasDiscriminator<string>([DiscriminatorColumnName]) method when mapping your entity type.

Here is an example:

protected override void OnModelCreating(ModelBuilder modelBuilder)
{
	modelBuilder.Entity<Animal>()
		.HasDiscriminator<string>("DiscriminatorColumnName")
		.HasValue<Cat>("Cat")
		.HasValue<Dog>("Dog");
}

How to map entities in the 'OnModelCreating' method to implement a TPH inheritance in EF Core?

To implement the TPH inheritance strategy in EF Core, you need to:

  1. Call the HasDiscriminator<type>([DiscriminatorName]) method for your root entity
  2. Call the HasValue([DiscriminatorName]) method for every concrete entity

Here is an example:

protected override void OnModelCreating(ModelBuilder modelBuilder)
{
	modelBuilder.Entity<Animal>()
		.HasDiscriminator<string>("DiscriminatorColumnName")
		.HasValue<Cat>("Cat")
		.HasValue<Dog>("Dog");
}

In this configuration:

  • The Animal is an abstract class, meaning you don't map it to a table.
  • The .HasDiscriminator<string>("DiscriminatorColumnName") will create a column name named DiscriminatorColumnName of type string.
  • The HasValue<Cat>("Cat") map the Cat type to the discriminator value Cat.
  • The HasValue<Dog>("Dog") map the Dog type to the discriminator value Dog.

Is there any performance issue related to TPH inheritance in EF Core?

The TPH inheritance generally offers good performance for read operations due to fewer joins and a simpler querying model than other inheritance. Write operations are also usually very fast since only 1 table is used.


Can I have multiple DbSet instances for each class within a TPH inheritance in EF Core?

Yes, every concrete and abstract type can be in its own DbSet. Here is an example:

public DbSet<Animal> Animals { get; set; }
public DbSet<Cat> Cats { get; set; }
public DbSet<Dog> Dogs { get; set; }

In this example, we have mapped the abstract Animal type to the DbSet<Animal> and both concrete types to DbSet<Cat> and DbSet<Dog>.

When you query the DbSet<Animal>, the result will be a list of Animal, which will be either of Cat or Dog type.


Can I combine TPH inheritance with another inheritance in EF Core?

No, you can only have one inheritance at a time. You cannot combine Table Per Hierarchy (TPC) with a TPC or TPT inheritance.



Date Modified: 2023-08-16
